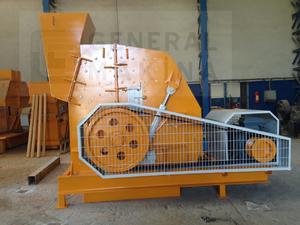

New generation secondary turbo impact crusher 250 tph - Caledon
Thursday, 28 June 2018
Item details
City:
Caledon, Western Cape
Offer type:
Sell
Price:
USD 60,000
Item description
TECHNICAL DETAILS
• Model: GNR-DMK01
• Type: Impact crusher
• Feeding size: 850 mm
• Power: Heavy duty, 160 Kw 450 rpm
• Rotor Size: Ø1100x1000 mm
• Weight: 19000 kg
• Heavy Duty Type SKF-FAG Bearings
• Coating: Double lay epoxy coated after sand blasting and lining
• Main Construction: Heat tempered steel against resistance, welded structure
including motor and primary group stationary chassis.
• Designed to crush medium hardness meterial with high reduction ratio.
• It is possible to crush big sized meterials with special alloy pallets and crush plates.
• Product output size can be controlled with hydraulic adjustment system between pandulums and rotor.
• It is very easy to change wear parts and perform maintanence by hydraulic system
• Pallets made of manganese castings
• Rotor Metal Sheet: 100mm
• Body Metal Sheet: 15-20mm ST 37
• Inner liner %16-18 Manganese +%2,2 Chromium Alloy Casting
Maintenance platform, motor housing and belt guard included
• Model: GNR-DMK01
• Type: Impact crusher
• Feeding size: 850 mm
• Power: Heavy duty, 160 Kw 450 rpm
• Rotor Size: Ø1100x1000 mm
• Weight: 19000 kg
• Heavy Duty Type SKF-FAG Bearings
• Coating: Double lay epoxy coated after sand blasting and lining
• Main Construction: Heat tempered steel against resistance, welded structure
including motor and primary group stationary chassis.
• Designed to crush medium hardness meterial with high reduction ratio.
• It is possible to crush big sized meterials with special alloy pallets and crush plates.
• Product output size can be controlled with hydraulic adjustment system between pandulums and rotor.
• It is very easy to change wear parts and perform maintanence by hydraulic system
• Pallets made of manganese castings
• Rotor Metal Sheet: 100mm
• Body Metal Sheet: 15-20mm ST 37
• Inner liner %16-18 Manganese +%2,2 Chromium Alloy Casting
Maintenance platform, motor housing and belt guard included
